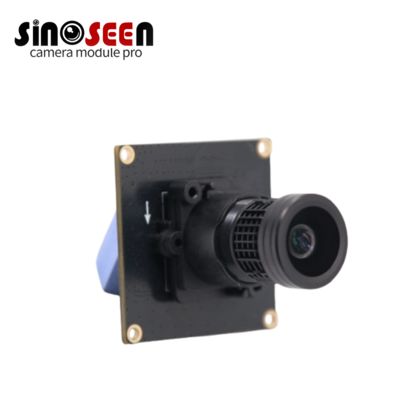

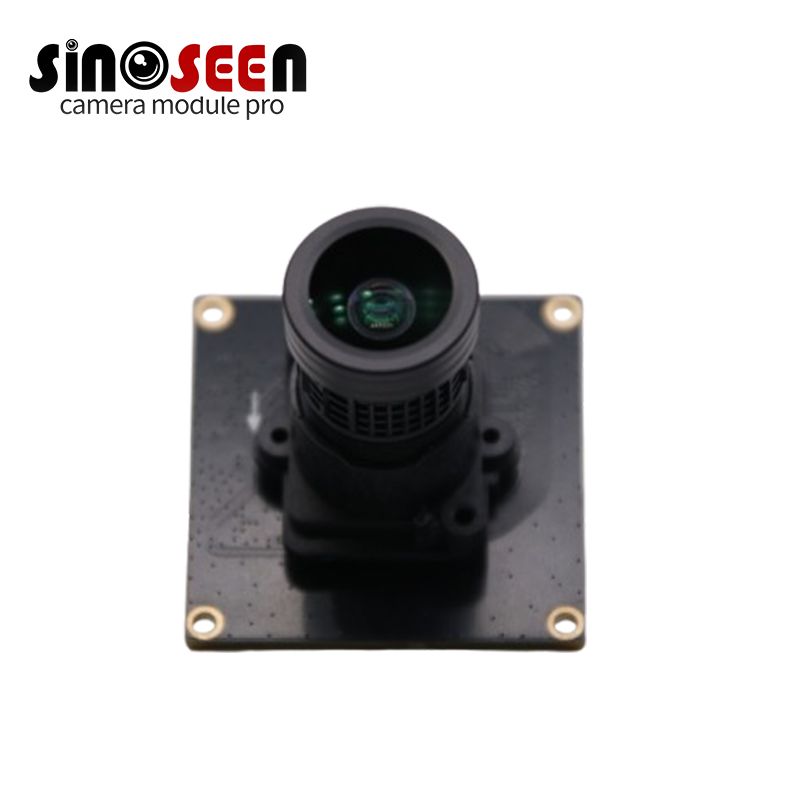

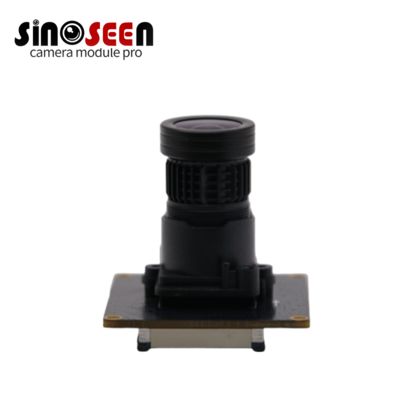

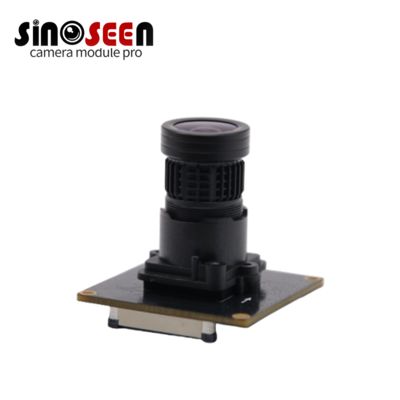

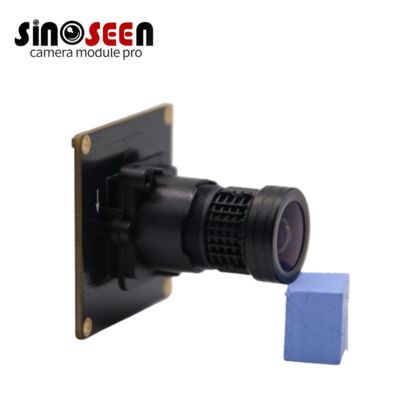

Sony IMX678 8MP MIPI Camera Module for Drones and Automotive
Detalhes do produto:
| Place of Origin: | China |
| Marca: | Sinoseen |
| Certificação: | RoHS、ISO9001、CE |
| Model Number: | CK-82198-V1.0 |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 5 |
|---|---|
| Preço: | 10-100USD or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Informação detalhada |
|||
| Type:: | MIPI Camera Module | Sensor: | IMX678 |
|---|---|---|---|
| Resolution: | 8MP | Dimensions: | 38mmx38mm (compatible With 32mmx32mm) |
| Destacar: | Sony IMX678 8MP MIPI camera module,MIPI camera module for drones,automotive MIPI camera module with warranty |
||
Descrição de produto
Sony IMX678 Sensor Camera Module for Drones and Automotive Applications
Product Attributes
| Attribute | Value |
|---|---|
| Type | MIPI Camera Module |
| Sensor | IMX678 |
| Resolution | 8MP |
| Dimensions | 38mm × 38mm (compatible with 32mm × 32mm) |
| High Light | MIPI Camera Module, Machine Vision IMX678 Camera Module |
Product Overview
The CK-82198-V1.0 4K camera module is a versatile imaging solution designed for smart home, AIoT, drones, automotive, and industrial applications. Powered by the Sony IMX678 sensor, it delivers sharp detail, excellent low-light performance, and HDR adaptability across various environments.
Key Features
- 4K Ultra HD clarity for high-end AIoT and imaging applications
- Superior low-light performance for 24/7 monitoring capabilities
- HDR capability ensures balanced exposure in all lighting conditions
- Compact 38 × 38 mm design for seamless integration into devices
- Versatile applications: smart home, drones, automotive, face recognition, digital signage
- Wide FOV option (108°) for broader scene coverage
Technical Specifications
| Item | Specification |
|---|---|
| Model | CK-82198-V1.0 |
| Sensor | Sony IMX678 CMOS |
| Optical Format | 1/1.8" (8.86 mm diagonal) |
| Effective Pixels | 8.40M (3840 × 2160) |
| Pixel Size | 2.0µm × 2.0µm |
| Lens | Fixed Focus (FF) |
| Interface | MIPI (2/4/8 Lane, RAW10/RAW12) |
| Resolution Options | 3840×2160, 2592×1944, 2560×1440, 2048×1536, 1920×1080, 1280×720, 800×600, 640×480, 320×240 @30fps |
| Dynamic Range | DOL-HDR, ClearHDR |
| Gain | 0-72 dB |
| FOV | 108° optional |
| Dimensions | 38 × 38 mm |
| IR Filter | 650 nm |
