Sony IMX290 MIPI Camera Module 1080p 120fps Low-Light
Detalhes do produto:
| Place of Origin: | China |
| Marca: | Sinoseen |
| Certificação: | RoHS、ISO9001、CE |
| Model Number: | SNS22195-V1.0 |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 5 |
|---|---|
| Preço: | 10-100USD or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Informação detalhada |
|||
| Type:: | MIPI Camera Module | Sensor: | Sony IMX290 CMOS |
|---|---|---|---|
| Resolution: | 1920 × 1080 | Dimensions: | (compatible With 32mmx32mm) |
| Destacar: | Sony IMX290 MIPI camera module,1080p low-light camera module,120fps MIPI camera module |
||
Descrição de produto

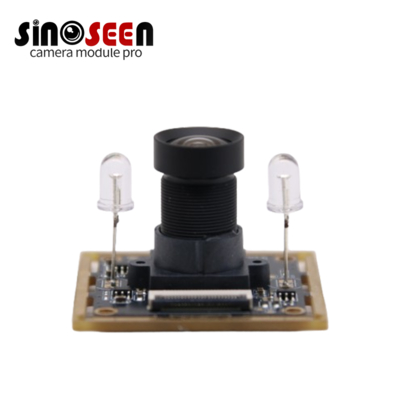

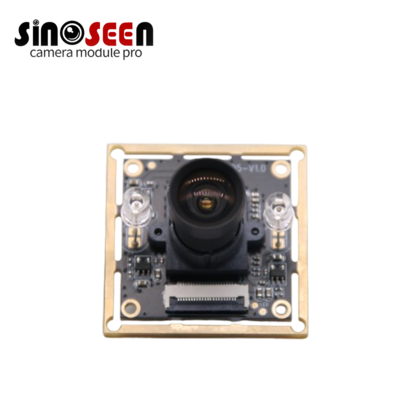

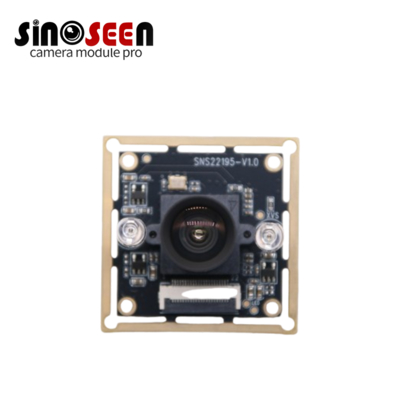

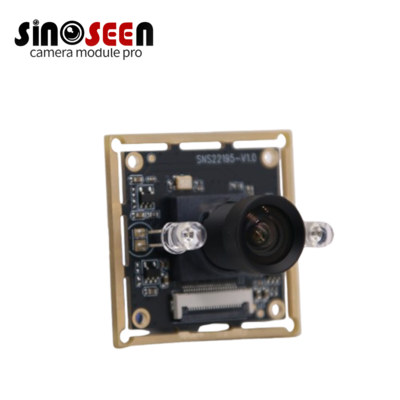

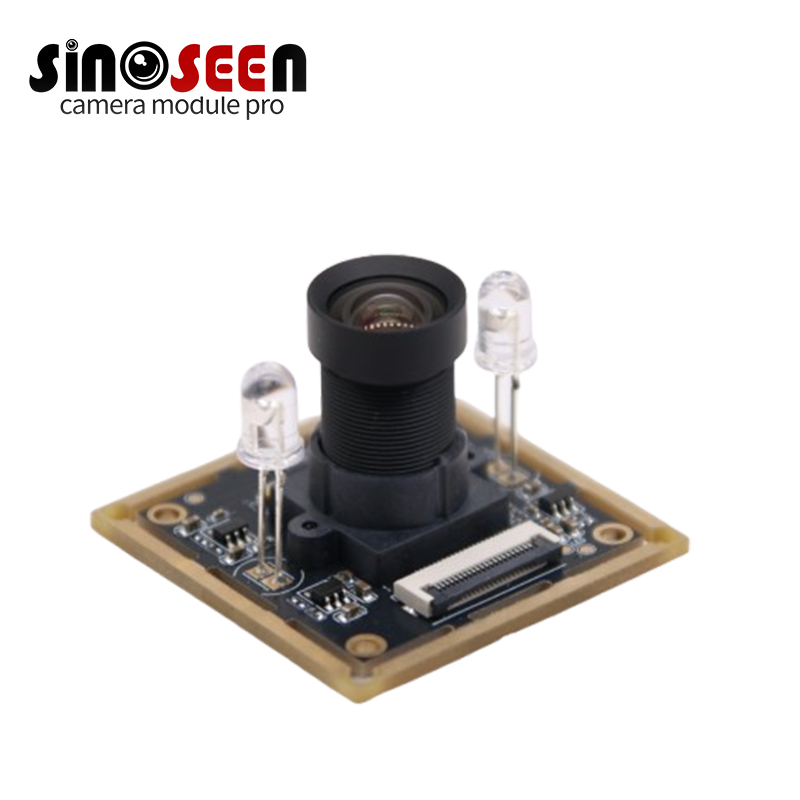

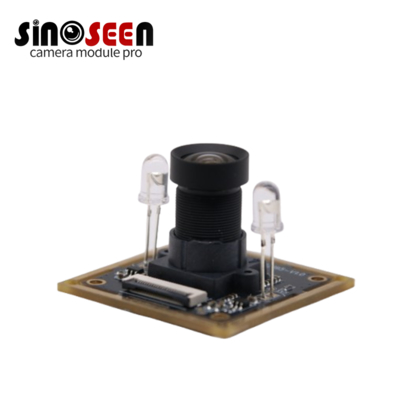

Sony IMX290 MIPI Camera Module 1080p 120fps Low-Light
Product Overview
The Sony IMX290 MIPI Camera Module delivers high-speed, low-light performance with 120 fps at Full HD resolution, making it ideal for security monitoring, facial recognition, automotive DVRs, and smart home applications.
Key Features
- Full HD 1080p @ 120 fps for motion-intensive applications
- Superior low-light performance for night surveillance
- Wide dynamic range (WDR) for challenging lighting conditions
- Broad platform compatibility: Qualcomm, HiSilicon, MTK, RK, STM32
- Compact 38 × 38 mm size for embedded systems
Technical Specifications
| Model | SNS22195-V1.0 |
|---|---|
| Sensor | Sony IMX290 CMOS |
| Resolution | 1920 × 1080 |
| Dimensions | 38 × 38 mm (compatible with 32mm×32mm) |
| Optical Format | 1/2.8 inch |
| Pixel Size | 2.9 µm × 2.9 µm |
| Frame Rates | 1920×1080 @ 120 fps 1280×720 @ 120 fps 640×480 @ 120 fps 320×240 @ 120 fps |
| Shutter Type | Electronic rolling shutter |
| Focus Type | Fixed Focus (FF) |
| Lens FOV | 74° (optional) |
Electrical Characteristics
| Analog Supply (AVDD) | 2.9 V |
|---|---|
| Digital Core (DVDD) | 1.2 V |
| I/O Voltage (IOVDD) | 1.8 V |
| Power Consumption | Low power (optimized for embedded applications) |
Platform Compatibility
- Operating Systems: Windows XP/Win7/Android/Linux
- Supported Platforms: Qualcomm, Rockchip (RK), MTK, Allwinner, HiSilicon, STM32
