Lugar de origem:
CHINA
Marca:
Sinoseen
Certificação:
RoHS、ISO9001、CE
Número do modelo:

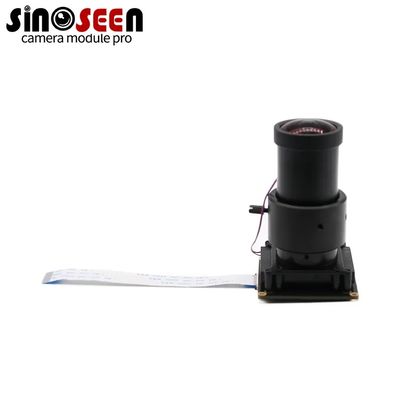

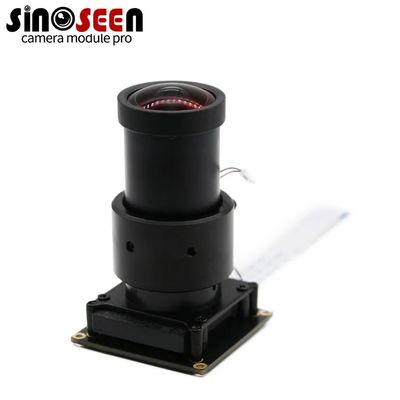

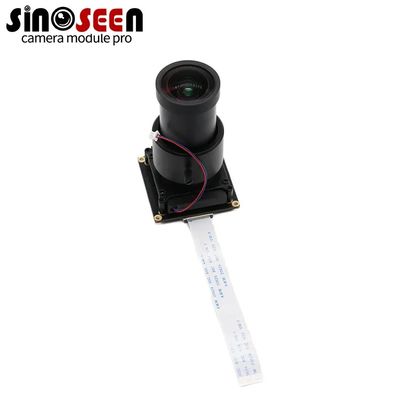

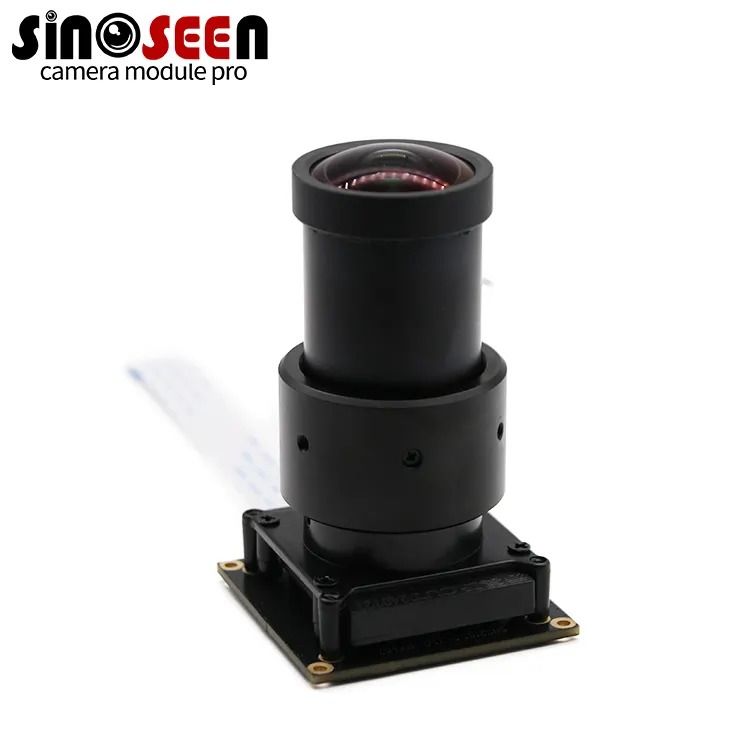

XLS-IMX567/568-8MP
| Product No | XLS-IMX567-8MP | XLS-IMX568-8MP |
|---|---|---|
| CMOS Sensor | 1/1.8" Sony IMX567, Mono/color, 5.1 Mpixel | 1/1.8" Sony IMX568, Mono/color, 5.1 Mpixel |
| Active pixels | 2472(H)x2064(V) | 2472(H)x2064(V) |
| Pixel size | 2.74(H)x2.74(V)um | 2.74(H)x2.74(V)um |
| Active sensor size | 6.773(H)x5.655(V)mm | 6.773(H)x5.655(V)mm |
| Shutter type | Global Shutter | Global Shutter |
| ADC Resolution | 8 Bit / 10 Bit / 12 Bit | 8 Bit / 10 Bit / 12 Bit |
| CS1-2 output | 2 lanes/4 lanes/RAW 8, 10 or 12 | 2 lanes/4 lanes/RAW 8, 10 or 12 |
| CS1-2 maximum speed | 1.2 Gbps/lane max. | 1.2 Gbps/lane max. |
| CS1-2 default speed | 1.2 Gbps/lane | 1.2 Gbps/lane |
| Max fps (full res., 4 lanes) | 97.0 fps at 8 Bit/79.4 fps at 10 Bit/67.2 fps at 12 Bit | 97.0 fps at 8 Bit/79.4 fps at 10 Bit/67.2 fps at 12 Bit |
| Output modes | streaming mode, fast trigger mode | streaming mode, fast trigger mode |
| Shutter resolution | 1 horizontal unit | 1 horizontal unit |
| Gain | 0-24dB analog gain + 24-48dB digital gain | 0-24dB analog gain + 24-48dB digital gain |
| S/N ratio | n/a | n/a |
| dynamic range | n/a | n/a |
| HDR | NO | NO |
| CRA | n/a | n/a |
| ROI/cropping support | YES | YES |
| Binning/subsampling support | Yes: 2x2 binning | Yes: 2x2 binning |
| Reverse modes | for vertical or horizontal: normal or inverted readout | for vertical or horizontal: normal or inverted readout |
| Trigger input | YES | YES |
| Flash output | YES | YES |
| Power consumption | 210mA(@3.3V) max. when active | 180mA(@3.3V) max. when active |
| Standby current | 50mA | 45mA |
| Operating temperature | -30 to +75 deg C, non-condensing | -30 to +75 deg C, non-condensing |
| Storage temperature | -30 to +80 deg C | -30 to +80 deg C |
| Performance guarantee temperature | -10 to +60 deg C | -10 to +60 deg C |
| Supply voltage | 3.3V +/- 5% at input of module (not including voltage drop on cable) | 3.3V +/- 5% at input of module (not including voltage drop on cable) |
