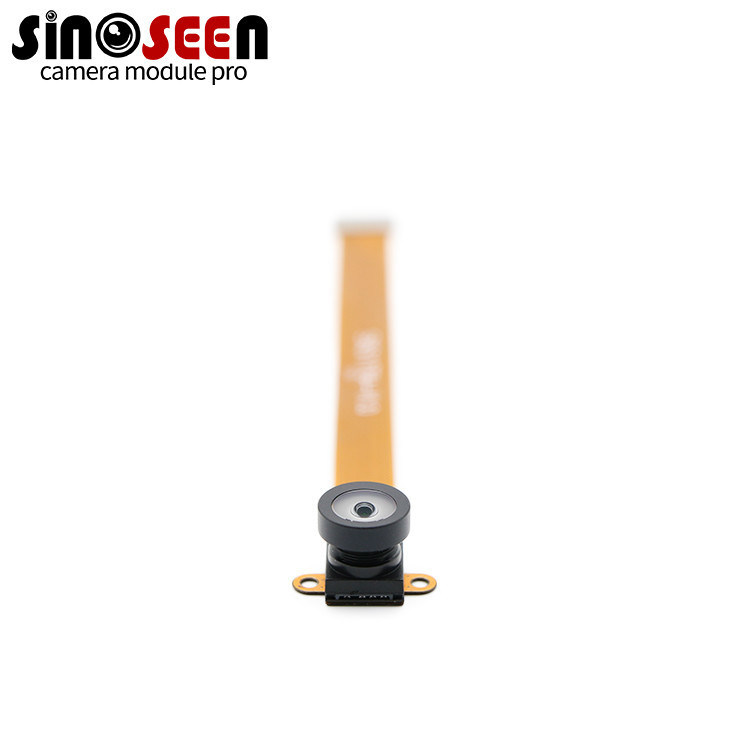

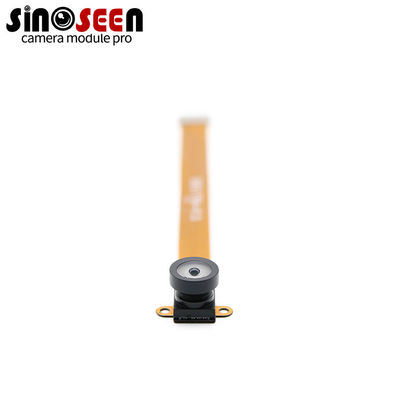

1MP OV9282 MIPI Camera Module with 1280x800 Resolution and Global Shutter for Embedded Vision
Detalhes do produto:
| Lugar de origem: | Shenzhen, China |
| Marca: | Sinoseen |
| Certificação: | RoHS |
| Número do modelo: | SNS11784-V1.0 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 5 |
|---|---|
| Preço: | 10-100USD、negotiable |
| Detalhes da embalagem: | Bandeja+bolsa anti-estática na caixa de caixa |
| Tempo de entrega: | 2-3 semanas |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 500000 peças/mês |
|
Informação detalhada |
|||
| Tipo: | módulo da câmera | Sensor: | 1/4 " Omnivision OV9282 CMOS |
|---|---|---|---|
| Resolução: | 1MP 1280 (H) x 800 (V) | Dimensões: | Personalizável |
| FOV da lente: | 60° (opcional) | Tipo de foco: | Foco fixo |
| Interface: | Mipi | Recurso: | Obturador global |
| Destacar: | 1MP OV9282 MIPI camera module,1280x800 resolution camera module,global shutter camera module for embedded vision |
||
Descrição de produto
1MP OV9282 MIPI Camera Module with 1280x800 Resolution and Global Shutter for Embedded Vision
Product Description
The 1MP OV9282 MIPI camera module features a 1/4-inch CMOS image sensor with a resolution of 1280*800 pixels, designed for clear and consistent imaging in embedded and industrial applications. Its global shutter technology ensures precise image capture of fast-moving subjects without motion blur, making it ideal for machine vision, robotics, and gesture recognition.
Equipped with a MIPI CSI-2 interface, it provides fast and reliable data transfer, compatible with popular SBCs such as Raspberry Pi, Jetson, and other embedded platforms. The compact design supports easy integration into small devices and space-limited systems.
Offering excellent dynamic range (68dB), low noise, and consistent color accuracy, this module delivers stable performance across a variety of lighting conditions.
Highlights
- 1MP OV9282 color CMOS sensor, 1280*800 resolution
- Global shutter eliminates motion distortion
- MIPI CSI-2 interface for high-speed transmission
- Compact size, easy integration for embedded devices
- Ideal for machine vision, robotics, and smart sensing
Specification
| Model No | SNS11784-V1.0 |
|---|---|
| Sensor | 1/4" Omnivision OV9282 CMOS |
| Pixel | 1 Mega Pixel |
| Most effective pixels | 1280(H) x 800(V) |
| Pixel Size | 3.0µm x 3.0µm |
| Image area | 3896um(H) x 2453um (V) |
| Compression format | MJPG / YUY2 |
| Shutter Type | Global Shutter |
| Chroma | B&W, Monochrome |
| Focus type | Fixed focus |
| S/N ratio | 38dB |
| Dynamic range | 68dB |
| Dark current | 80e-/sec |
| Interface type | mipi |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens |
Focal length: 3.6mm Lens Size: 1/4 inch FOV: 60° Thread Size: M12*P0.5 |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 180mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control | Support |
| Auto White Balance | Support |
| Auto Gain Control | Support |
| Dimension | Customizable |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available global shutter USB camera module
Omnivision - OV7251 - 0.3MP - Monochrome(black and white)
Omnivision - OV9281 - 1MP - Monochrome(black and white)
ON Semiconductor - AR0144 - 1MP - Monochrome(black and white) or RGB color
Omnivision - OG02B1B - 2MP - Monochrome(black and white)
Omnivision - OG02B10 - 2MP - RGB color
