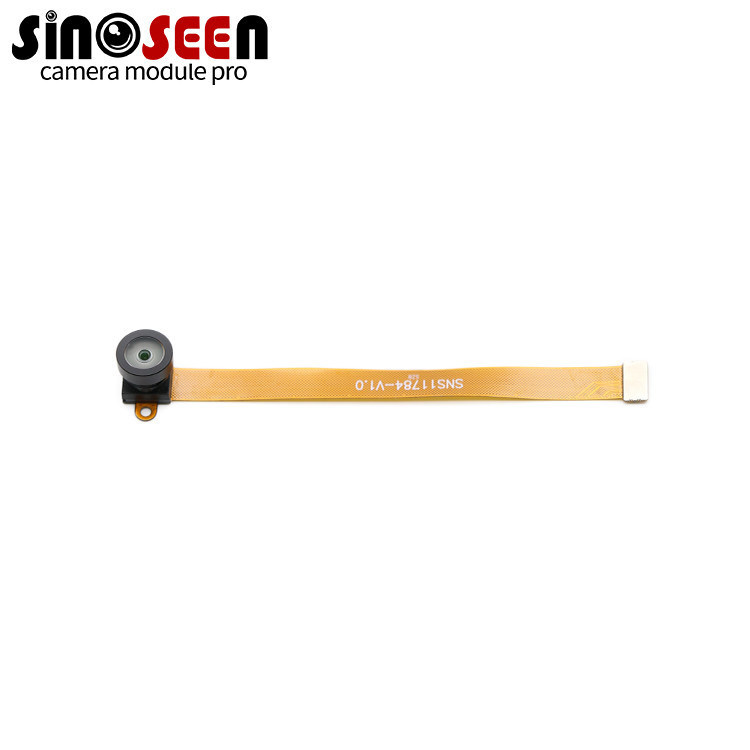

OV9282 1MP 720P MIPI Camera Module with Global Shutter for Video Conferencing and Surveillance
Detalhes do produto:
| Lugar de origem: | Shenzhen, China |
| Marca: | Sinoseen |
| Certificação: | RoHS |
| Número do modelo: | SNS11784-V1.0 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 5 |
|---|---|
| Preço: | 10-100USD、negotiable |
| Detalhes da embalagem: | Bandeja+bolsa anti-estática na caixa de caixa |
| Tempo de entrega: | 2-3 semanas |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 500000 peças/mês |
|
Informação detalhada |
|||
| Tipo: | módulo da câmera | Sensor: | 1/4 " Omnivision OV9282 CMOS |
|---|---|---|---|
| Resolução: | 1MP 1280 (H) x 800 (V) | Dimensões: | Personalizável |
| FOV da lente: | 60° (opcional) | Tipo de foco: | Foco fixo |
| Interface: | Mipi | Recurso: | Obturador global |
| Destacar: | OV9282 1MP MIPI camera module,720P global shutter camera,MIPI camera module for surveillance |
||
Descrição de produto
OV9282 1MP 720P MIPI Camera Module with Global Shutter
Product Overview
The OV9282 1MP MIPI camera module delivers 720P (1280*800) resolution for high-quality video capture. Featuring a global shutter CMOS sensor, it accurately freezes motion, making it ideal for surveillance, video conferencing, and facial recognition applications.
The module utilizes a MIPI CSI-2 interface for fast data transmission and seamless integration with embedded systems. With low power consumption (180mW) and a wide operating temperature range, it's designed for continuous operation in demanding environments.
Equipped with a fixed-focus lens offering 60° field of view, the camera provides clear, distortion-free imaging. Its compact size enables flexible integration in small camera housings or embedded devices.
Key Features
- 720P (1280*800) resolution for clear video output
- OV9282 CMOS sensor with global shutter technology
- Low power consumption with stable performance
- MIPI interface compatible with SBCs and embedded systems
- Ideal for security cameras, video conferencing, and monitoring applications
Technical Specifications
| Model No | SNS11784-V1.0 |
|---|---|
| Sensor | 1/4" Omnivision OV9282 CMOS |
| Pixel | 1 Mega Pixel |
| Effective Pixels | 1280(H) * 800(V) |
| Pixel Size | 3.0µm * 3.0µm |
| Image Area | 3896µm(H) * 2453µm(V) |
| Compression Format | MJPG / YUY2 |
| Shutter Type | Global Shutter |
| Chroma | B&W, Monochrome |
| Focus Type | Fixed focus |
| S/N Ratio | 38dB |
| Dynamic Range | 68dB |
| Dark Current | 80e-/sec |
| Interface Type | MIPI |
| Adjustable Parameters | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens |
Focal length: 3.6mm Lens Size: 1/4 inch FOV: 60° Thread Size: M12*P0.5 |
| Audio Frequency | Optional |
| Power Supply | USB BUS POWER |
| Power Consumption | DC 5V, 180mW |
| Main Chip | DSP/SENSOR/FLASH |
| Auto Exposure Control | Support |
| Auto White Balance | Support |
| Auto Gain Control | Support |
| Dimension | Customizable |
| Storage Temperature | -20°C to 70°C |
| Operating Temperature | 0°C to 60°C |
| Supported OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co., Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera modules as per your request
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera modules as per your request
Available Global Shutter USB Camera Modules
Omnivision OV7251 - 0.3MP - Monochrome (black and white)
Omnivision OV9281 - 1MP - Monochrome (black and white)
ON Semiconductor AR0144 - 1MP - Monochrome or RGB color
Omnivision OG02B1B - 2MP - Monochrome (black and white)
Omnivision OG02B10 - 2MP - RGB color
