Sinoseen Super Tiny 25mmx12mm USB Camera Module Black & White Image 120FPS High Frame Rate 0.3MP Door/Outdoor Use
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | Sinoseen |
| Número do modelo: | SNS-0.3MP-GC0308-H515 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 5 |
|---|
|
Informação detalhada |
|||
| Tamanho dos pixels: | 3,4µm x 3,4µm | Tipo de sensor: | CMOS Galaxycore GC0308 |
|---|---|---|---|
| Temperatura de armazenamento: | -20~70℃ | Pixels Efetivos: | 640 (H) x 480 (V) |
| Dimensão: | 25MM x 12MM | Taxa de quadros: | 30FPS/120FPS |
| Temperatura de operação: | 0 ~ 60 ℃ | Sensor de imagem: | 1/6,5 |
| Visualização da lente: | 50° | Compressão de vídeo: | H.265 |
| Resolução: | 5 MP | Tipo de obturador: | Obturador de rolamento eletrônico |
| Relação S/R: | 49dB | Faixa dinâmica: | 55 dB |
| Tipo de interface: | USB2.0 | ||
| Destacar: | Super Tiny USB camera module,25mmx12mm USB camera module,120FPS high frame rate camera |
||
Descrição de produto

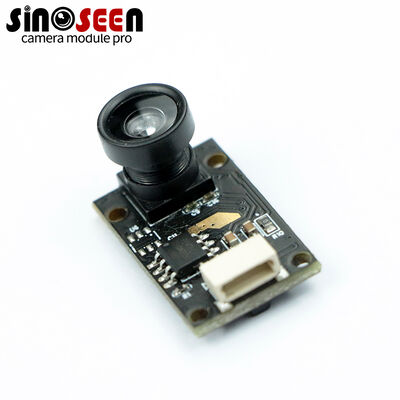

Sinoseen Super Tiny USB Camera Module
Compact 25mm×12mm USB camera module delivering high-quality black and white imaging at 120FPS frame rate for industrial and embedded applications.
Key Features
- Ultra-compact dimensions: 25mm × 12mm
- Monochrome imaging for superior black/white image quality
- High frame rate: 120FPS at 320×240 resolution
- Standard 30FPS at 640×480 resolution
- Wide application compatibility for robotics, IoT, AI, and industrial automation
Technical Specifications
| Model Number | SNS-0.3MP-GC0308-H515 |
| Sensor | 1/6.5" Galaxycore GC0308 CMOS |
| Pixel Resolution | 0.3 Mega Pixel (640×480 effective pixels) |
| Pixel Size | 3.4µm × 3.4µm |
| Chroma | Monochrome (Black/White) |
| Compression Format | MJPEG / YUV2 (YUYV) |
| Shutter Type | Electronic rolling shutter |
| Focus Type | Fixed focus |
| S/N Ratio | 49dB |
| Dynamic Range | 55dB |
| Sensitivity | 3300mV / lux-sec |
| Interface | USB 2.0 |
| Lens FOV | 50° |
| Adjustable Parameters | Brightness, Contrast, Color Saturation, Hue, Definition, Gamma, White Balance, Exposure |
| Power Supply | USB BUS POWER (DC 5V, 70mW) |
| Operating Temperature | 0°C to 60°C |
| Supported OS | Windows XP/Vista/7/8/10, Linux (UVC), Mac OS X 10.4.8+, Android 4.0+ |
Product Images
Application Areas
Robotics, IoT, artificial intelligence, drones, object tracking, sports, medical, industrial automation, agritech, biometrics, depth sensing, 3D, face recognition, machine vision, VR, AR, computer vision, and embedded systems.
About Shenzhen Sinoseen Technology
Established in 2009, Shenzhen Sinoseen Technology specializes in OEM/ODM customized CMOS image processing solutions. We provide comprehensive services from design and development to manufacturing and after-sales support, offering competitive pricing and quality for USB camera modules, mobile phone cameras, notebook cameras, security cameras, car cameras, and smart home camera products.
Customization Process
We tailor camera solutions based on your specific application requirements, considering factors like product structure size, image definition, frame rate, lens angle, and lighting conditions. Contact our customer service to discuss your project needs and receive optimized DSP chip, sensor, and lens recommendations.
