0.3MP Fixed Focus IR Filter DVP Camera Module With Omnivision OV7740 CMOS Sensor
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | sinoseen |
| Número do modelo: | SNS-DualOV9732-M1.0 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 5 |
|---|
|
Informação detalhada |
|||
| Visualização da lente: | 60° | Formato de compressão de vídeo: | H.264 |
|---|---|---|---|
| Temperatura de armazenamento: | -30°C a 85°C | Temperatura operacional: | 0°C a 60°C |
| Sensor de imagem: | OV7740 | Interfaces seriais: | DVP |
| Pixels Efetivos: | 640 x 480 | Tamanho dos pixels: | 4,2 μm x 4,2 μm |
| Saída de vídeo: | Bayer bruto 10 bits/8 bits | Tamanho da matriz ativa: | 640×480 a 60fps, 320×240 a 120fps |
| Tamanho do sensor: | 1/5" | Distorção da TV: | <1% |
| Tensão operacional: | AVDD:3,0~3,6V DOVDD:1,7~3,6V DVDD:1,7~1,9V | Faixa de temperatura de armazenamento: | -20~70℃ |
| Comprimento do cabo USB: | defeito | ||
| Destacar: | 0.3MP fixed focus camera module,IR filter DVP camera module,Omnivision OV7740 CMOS sensor |
||
Descrição de produto
0.3MP Fixed Focus IR Filter DVP Camera Module
This professional camera module features the Omnivision OV7740 CMOS sensor with DVP interface, delivering reliable imaging performance for industrial applications.
Key Features
- 0.3MP resolution with 640×480 effective pixels
- Omnivision OV7740 CMOS sensor technology
- DVP interface with Raw Bayer 10bit/8bit video output
- Lens compensation and automatic white balance functions
- High frame rates: 60fps at 640×480, 120fps at 320×240
- Compact 1/5" sensor size with 4.2μm pixel size
- Support for AEC, AEB, and AGC functions
- Customizable lens options and dimensions
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Number | SNS-FPC7740-V1 |
| Pixel Size | 4.2μm × 4.2μm |
| Effective Pixels | 640×480 |
| Video Output | Raw Bayer 10bit/8bit |
| Active Array Size | 640×480 @ 60fps, 320×240 @ 120fps |
| Image Sensor | 1/5" Omnivision OV7740 |
| Lens View | FOV60° (optional), F/N (optional) |
| TV Distortion | <1% |
| Operating Voltage | AVDD: 3.0~3.6V, DOVDD: 1.7~3.6V, DVDD: 1.7~1.9V |
| Operating Temperature | 0～60℃ |
| Storage Temperature | -20～70℃ |
| Dimensions | Customizable |

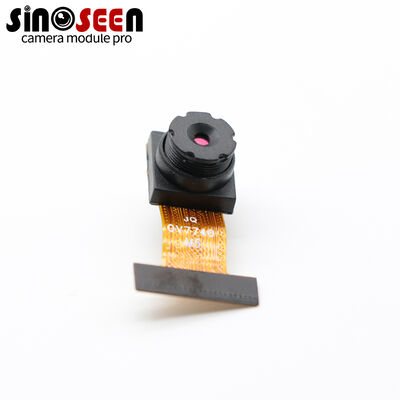

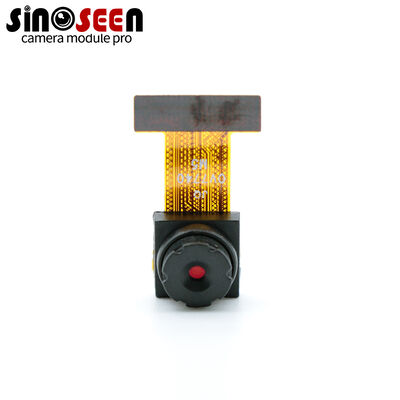

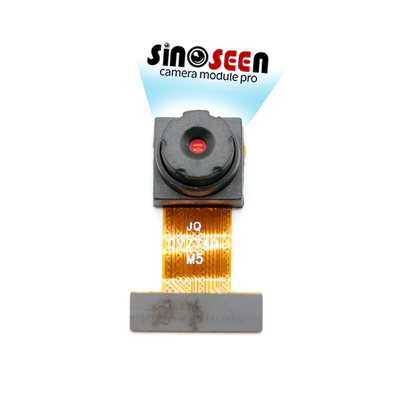

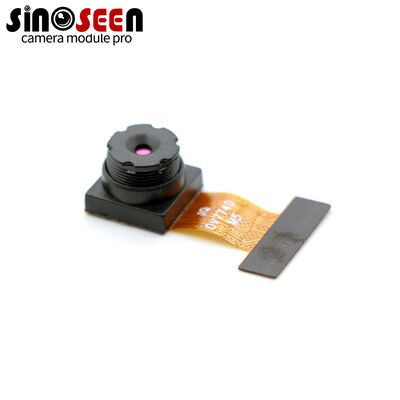

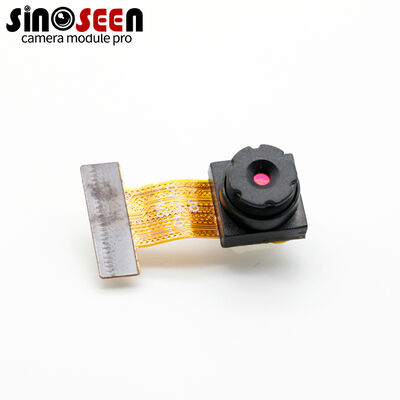

Product Images
Customization Services
We specialize in OEM/ODM customized CMOS image processing solutions, offering complete design, development, manufacturing, and after-sales services. Our expertise includes USB, MIPI, and DVP camera modules for various applications.
Application Areas
Machine vision, intelligent systems, security solutions, IoT devices, iris recognition, face recognition, VR applications, smart home solutions, UAV/drone cameras, mobile phone modules, and professional imaging systems.
Customization Process
We work closely with clients to determine optimal camera solutions based on application requirements, structural constraints, image quality needs, lighting conditions, and budget considerations.
Quality Assurance
Shenzhen Sinoseen Technology provides competitive pricing and quality assurance with comprehensive certifications and testing procedures.
Contact us to discuss your specific camera module requirements and receive customized solutions tailored to your application needs.
