5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | Sinoseen |
| Certificação: | RoHS |
| Número do modelo: | SNS-GM1133-V1.0 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 5 |
|---|---|
| Preço: | 10-100USD、negotiable |
| Detalhes da embalagem: | Bandeja+bolsa anti-estática na caixa de caixa |
| Tempo de entrega: | 2-3 semanas |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 500000 peças/mês |
|
Informação detalhada |
|||
| Tipo de sensor: | CMOS | Tamanho do módulo: | Duas camadas 38mmX38mm |
|---|---|---|---|
| Entrada de áudio: | Entrada MIC de áudio de canal | interface padrão: | Alta velocidade USB2.0 |
| Tamanho de pixel: | 1.4µm x1.4µm | Formato codificado: | H.265/H.264 |
| Consumo de energia: | Sobre 140mA | Distância de objeto: | 6CM-200CM |
| Método de direção: | Conduzir livre | Número de F: | 2.2 |
| Corrente operacional: | 610 mA ((VGA) | Max Image Circle: | 4,8 mm |
| Obra de arte: | Design de 8 camadas | Garantia: | 10 anos |
| COMPATIBILIDADE: | Windows, Mac, Linux | ||
| Destacar: | 5MP USB camera module for machine vision,VB1940 CMOS camera module with USB2.0,high-resolution USB camera module for imaging |
||
Descrição de produto

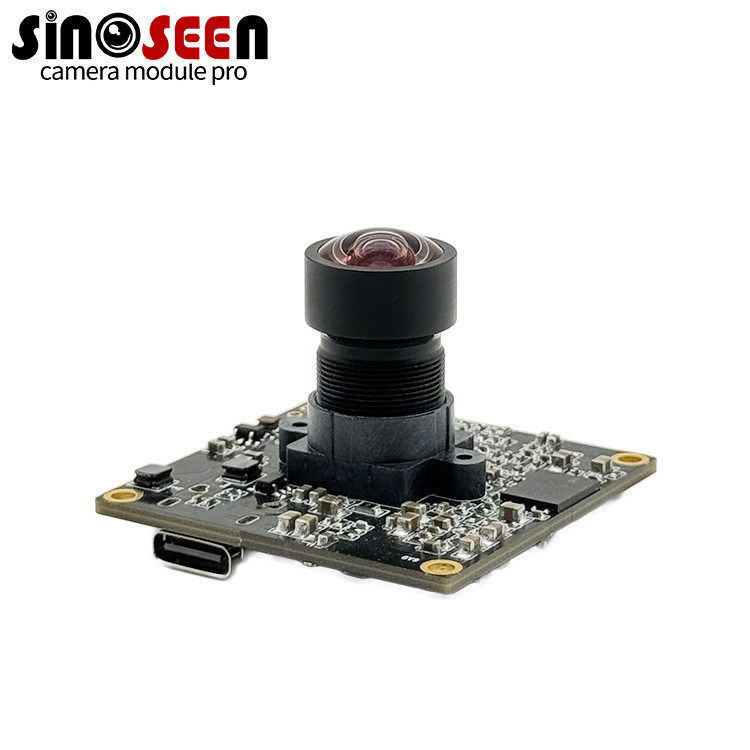

5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision
The Sinoseen 5MP USB2.0 CMOS camera module is designed for developers and system integrators who demand crisp image quality and stable performance. Powered by the VB1940 1/2.8-inch CMOS sensor, it captures 2592 *1944 resolution images with accurate color and superior low-light sensitivity, ideal for professional imaging solutions.
With plug-and-play USB2.0 connectivity, it ensures smooth installation and stable transmission up to 480MB/s. The module supports MJPG and YUV output, and is compatible with Windows, Mac, Linux, and Android platforms. Its robust design makes it suitable for AI vision, industrial inspection, surveillance, and video conferencing applications.
Key Features
- 5MP VB1940 CMOS sensor for clear, sharp images
- USB2.0 high-speed plug-and-play connection
- Supports MJPG / YUV formats
- Accurate color and excellent low-light imaging
- Cross-platform compatibility: Windows, Linux, Mac, Android
- Ideal for AI vision, industrial automation, and video systems
Technical Specifications
| Signal | SNS-GM1133-V1.0 | Remarks |
|---|---|---|
| Image Sensor Size | 1/2.8inch | |
| Effective Pixels | 2592H*1944V | |
| Pixel size | 2.0 um*2.0 um | |
| Optical distortion | <0.45% | |
| Image sensor Data output | Raw Bayer 10bits | |
| Video output | MPJG/YUV | |
| Maximum Frame Rates | 2592*1944 30 FPS 1920*1080 30 FPS 1600*1200 30 FPS |
MJPG |
| Digital interface | Type-c USB2.0 | 1.5m cable |
| Transfer rates | 480MB/S | |
| Power requirements | 5V±5% | |
| Storage temperature | -20℃ to 70℃ | |
| Operating temperature | -10℃ to 60℃ | |
| OS Support | Windows XP/Vista/7/8.1/10/Mac/Android/Linux 2.6.2 (include UVC) | |
| Default lens | M12*P0.5 | LENS |
| Lens Construction | 3G2P+650IR | |
| F/NO aperture | 3.0±5% | |
| EFL effective focal length | 4.18 mm±5% | |
| FOV angle | 82°±3° | |
| Focus method | Fixed focus | |
| Shooting distance | 60cm-∞ |
