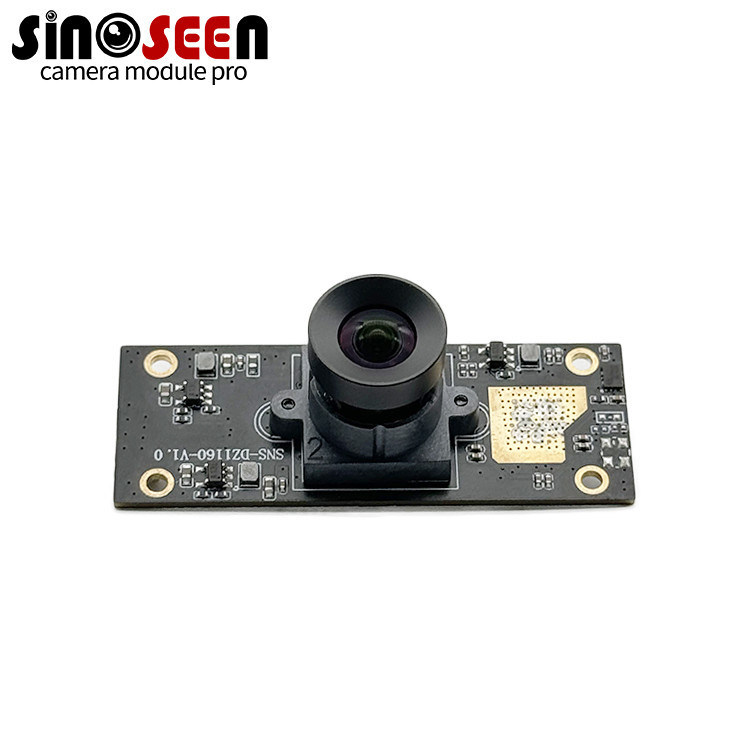

High Performance 1/2.8 CMOS Image Sensor Module USB2.0 4K UHD 30fps for Industrial and Vision Systems
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | Sinoseen |
| Certificação: | RoHS |
| Número do modelo: | SNS-DZ1160-V1.0 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 5 |
|---|---|
| Preço: | 10-100USD、negotiable |
| Detalhes da embalagem: | Bandeja+bolsa anti-estática na caixa de caixa |
| Tempo de entrega: | 2-3 semanas |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 500000 peças/mês |
|
Informação detalhada |
|||
| Distorção da TV: | <1.0% | Sensor: | 8 Megapixel IMX179 |
|---|---|---|---|
| Módulo pixel: | 5mp | Pixels: | Câmera de porta de rede de 2 MP |
| Resolução da imagem: | 640*480 | Tamanho de pixel: | 3.0µm x 3.0µm |
| Pinout: | 24 Pin | Cor: | Preto |
| Pedido do sistema de exploração: | WindowsXP/7/8/10 (protocolo UVC do apoio) | Saída de áudio: | Entrada MIC de áudio |
| Formato de saída: | MJPEG/YUV | Tamanho da Célula Unitária: | 1,55 um (h) x 1,55 um (v) |
| Taxa máxima de pixels: | 28Mp/s | Energia do equipamento: | 1.8W |
| Interface: | USB 2.0 | ||
| Destacar: | 4K UHD USB camera module,1/2.8 CMOS image sensor module,industrial vision USB camera |
||
Descrição de produto
High Performance 1/2.8 CMOS Image Sensor Module USB2.0 4K UHD 30fps
Product Overview
The Sinoseen 1/2.8" CMOS image sensor module delivers high-performance imaging with 4K UHD resolution at 30fps. Engineered with advanced CMOS technology, it ensures accurate color reproduction, minimal noise, and reliable image output across various lighting conditions. The USB2.0 interface enables fast data transfer and plug-and-play functionality.
This module supports multiple video and image formats including MJPG, YUV, JPG, BMP, AVI, and MP4. Integrated hardware and firmware controls allow precise adjustment of exposure, brightness, contrast, and saturation for optimal performance in industrial applications.
Compatible with Windows, Linux, and Android systems, the module works with both standard and custom M12 lenses. Featuring excellent low-light performance and wide dynamic range (WDR), it's ideal for machine vision, video conferencing, and AI imaging applications.
Key Features
- 1/2.8" CMOS sensor with 4K UHD resolution at 30fps
- USB2.0 high-speed interface for plug-and-play operation
- Supports multiple output formats (MJPG, YUV, JPG, BMP)
- Advanced exposure and color control for precise adjustment
- Excellent low-light performance and WDR capability
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Image Sensor Size | 1/2.8" | |
| Effective Pixels | 3864H * 2228V | |
| Pixel Size | 1.45 μm * 1.45 μm | |
| Optical Distortion | < 1.4% | |
| Image Sensor Data Output | Raw Bayer 10bits | |
| Video Output | MPJG / YUV | |
| Maximum Frame Rates | 3840*2160 30FPS 2592*1944 30FPS 2048*1536 30FPS 1600*1200 30FPS 1920*1080 30FPS 1280*960 30FPS 1280*720 30FPS 800*600 30FPS 640*480 30FPS 320*240 30FPS |
|
| Digital Interface | 5 pin 1.25mm USB2.0 | Cable length: 1.5m |
| Transfer Rates | 480MB/S | |
| Power Requirements | 5V ±5% | |
| Storage Temperature | -20℃ to 70℃ | |
| Operating Temperature | -10℃ to 60℃ | |
| Supported Systems | Windows XP/Vista/7/8.1/10 Mac/Android/Linux 2.6.2 (include UVC) |
|
| Default Lens | M12*P0.5 | LENS |
| Lens Construction | 4G2P+IR | |
| F/NO Aperture | 2.8±5% | |
| EFL | 2.74 mm±5% | |
| FOV | 102°±3° | |
| Focus Method | Fixed focus | |
| Shooting Distance | 60 cm-∞ |
